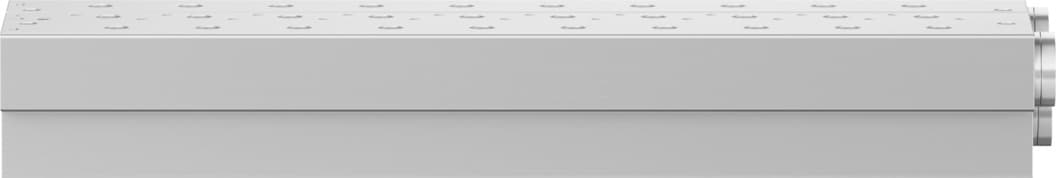

vabm-b10-20s-n14-10
Product ID:14510
Updated: 2026/4/3
Key Features
- 1Control up to 10 valves for complex pneumatic setups. 2、Integrate easily with standard 1/4 NPT system components. 3、Resist corrosion in demanding industrial environments reliably. 4、Reduce maintenance costs and system downtime effectively. 5、Comply with environmental regulations using certified materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1108g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576437 |
Specifications may be subject to change without notice
