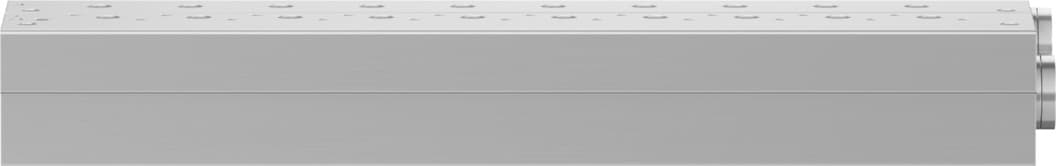

vabm-b10-20s-n14-10-p3
Product ID:14534
Updated: 2026/4/3
Key Features
- 1Ensure precise pneumatic connections with a 22MM grid dimension. 2、Install flexibly using optional mounting positions for varied setups. 3、Support complex systems with up to 10 maximum valve positions. 4、Resist moderate corrosion stress with CRC class 2 durability. 5、Meet environmental standards using RoHS-compliant wrought aluminium alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 922g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 576485 |
Specifications may be subject to change without notice
