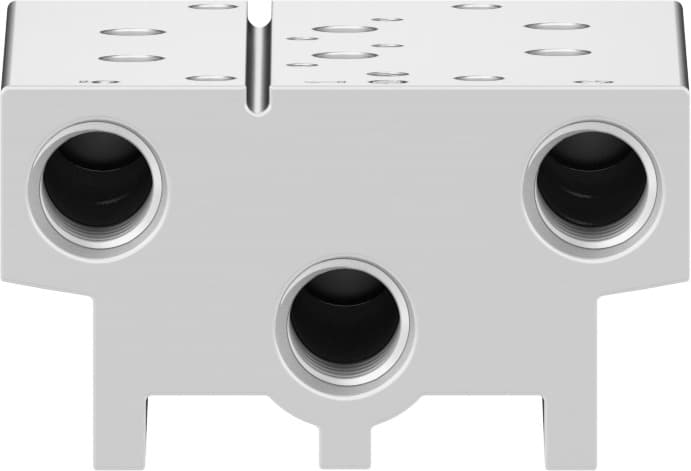

vabm-b10-20s-n14-2
Product ID:14503
Updated: 2026/4/3
Key Features
- 1Utilize a precise 22mm grid dimension for versatile manifold design. 2、Select optional mounting positions for flexible installation. 3、Resist moderate corrosion with durable CRC 2 class protection. 4、Conform to VDMA24364-B1/B2-L for high LABS (PWIS) standards. 5、Ensure environmental safety with RoHS-compliant wrought aluminum.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 344g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576429 |
Specifications may be subject to change without notice
