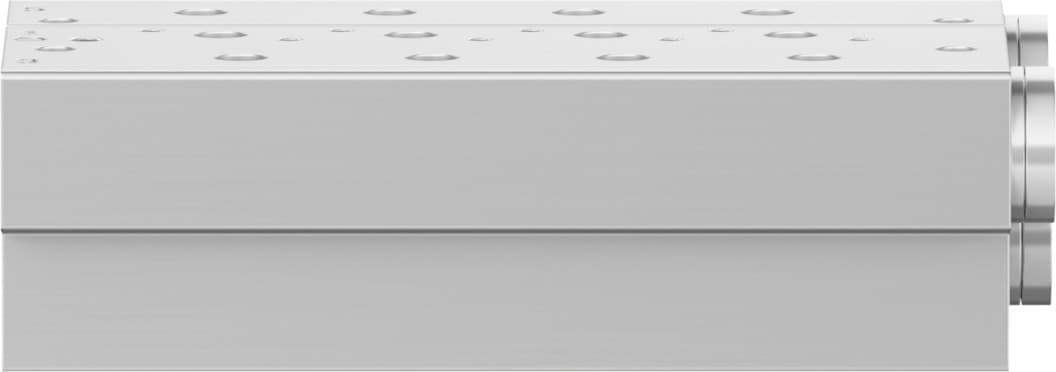

vabm-b10-20s-n14-3
Product ID:14504
Updated: 2026/4/3
Key Features
- 1Integrate compactly with a standardized 22MM grid dimension. 2、Choose versatile optional mounting positions for flexible installation. 3、Support multiple connections with 3 available valve positions. 4、Ensure reliable performance with class CRC 2 corrosion resistance. 5、Meet environmental regulations using RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 439g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576430 |
Specifications may be subject to change without notice
