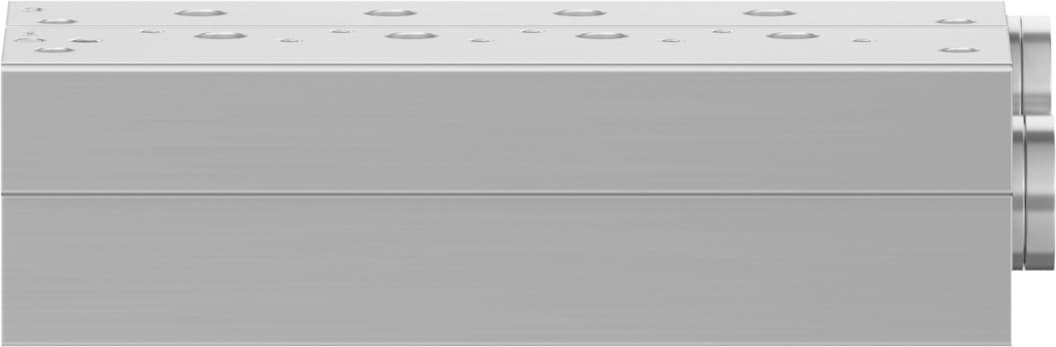

vabm-b10-20s-n14-4-p3
Product ID:14529
Updated: 2026/7/14
Key Features
- 1Install precisely with a compact 22MM grid dimension.
- 2Integrate flexibly using optional mounting positions.
- 3Control efficiently with support for up to 4 valve positions.
- 4Ensure durability with moderate corrosion resistance class cRC.
- 5Rely on sustainable RoHS-compliant wrought aluminium alloy.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 441g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 576479 |
Specifications may be subject to change without notice
