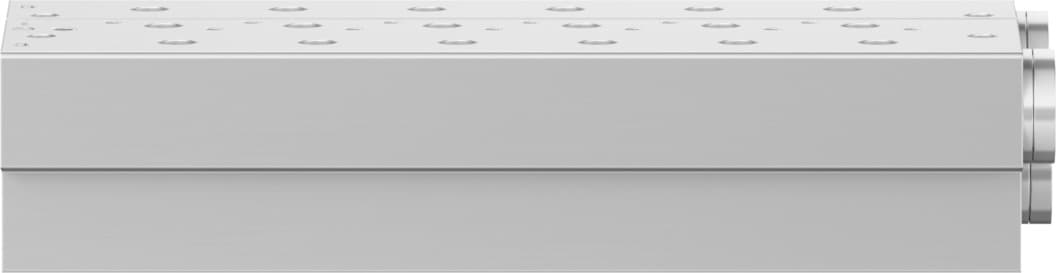

vabm-b10-20s-n14-5
Product ID:14505
Updated: 2026/4/3
Key Features
- 1Achieve precise valve placement with a 22mm grid dimension. 2、Enable versatile installation using optional mounting positions. 3、Control up to 5 valve positions for system efficiency. 4、Ensure durability with moderate corrosion resistance (CRC 2). 5、Meet safety standards with RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 5 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 630g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576432 |
Specifications may be subject to change without notice
