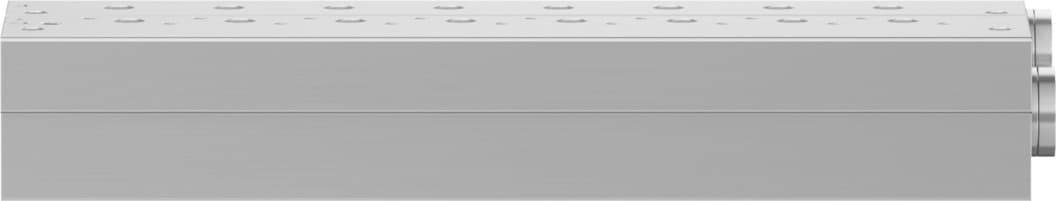

vabm-b10-20s-n14-7-p3
Product ID:14531
Updated: 2026/4/3
Key Features
- 1Utilize a 22mm grid dimension for a compact and efficient design. 2、Select from optional mounting positions for flexible installation. 3、Support up to 7 valve positions for complex pneumatic systems. 4、Resist moderate corrosion stress in challenging environments. 5、Ensure durability with RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 7 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 681g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 576482 |
Specifications may be subject to change without notice
