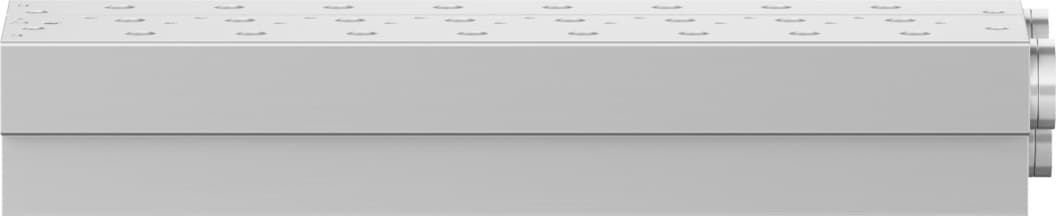

vabm-b10-20s-n14-8
Product ID:14508
Updated: 2026/4/3
Key Features
- 1Utilize a 22mm grid dimension for efficient space. 2、Choose optional mounting positions for versatile installation. 3、Support up to 8 valve positions for complex pneumatic systems. 4、Resist moderate corrosion stress (CRC 2) for enhanced durability. 5、Ensure long-lasting performance with RoHS-compliant aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 22mm | Mounting position | Any |
| Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 917g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 576435 |
Specifications may be subject to change without notice
