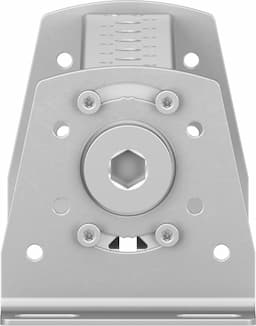

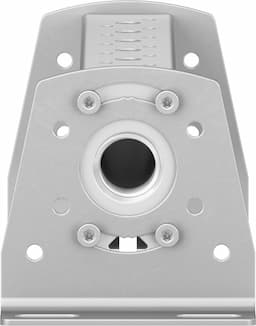

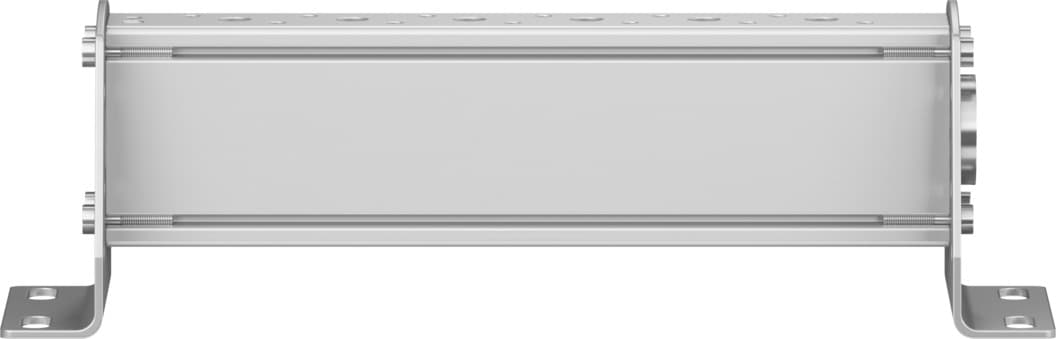

vabm-b10-25-g12-6-p53
Product ID:15200
Updated: 2026/4/4
Key Features
- 1Utilize a 27.5mm grid for precise pneumatic control. 2、Select optional mounting positions for versatile installation. 3、Manage up to 6 valve positions for system efficiency. 4、Rely on CRC 2 corrosion resistance for reliable operation. 5、Benefit from durable, RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 586g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | G1/2 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026223 |
Specifications may be subject to change without notice
