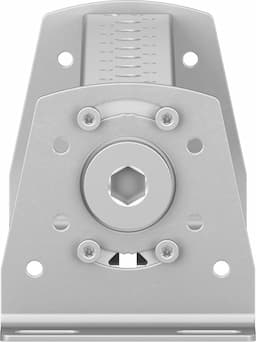

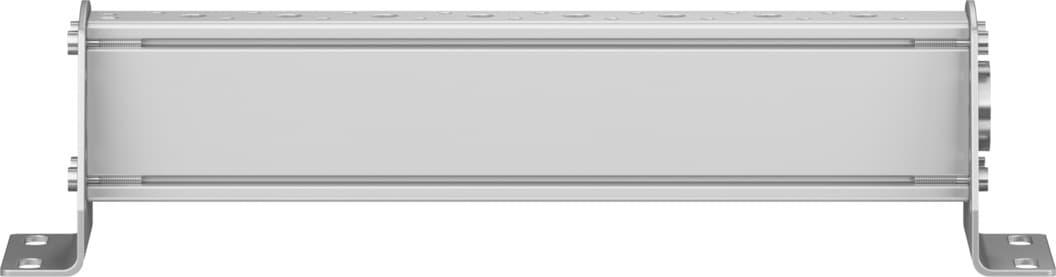

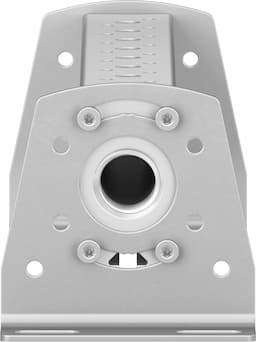

vabm-b10-25-n12-7-p53
Product ID:15210
Updated: 2026/4/4
Key Features
- 1Maximize space efficiency with a 27.5mm grid dimension. 2、Install flexibly using the optional mounting positions. 3、Support complex systems with up to 7 valve positions. 4、Ensure reliable performance with moderate corrosion stress resistance. 5、Guarantee durability with RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 7 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 668g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | 1/2 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026233 |
Specifications may be subject to change without notice
