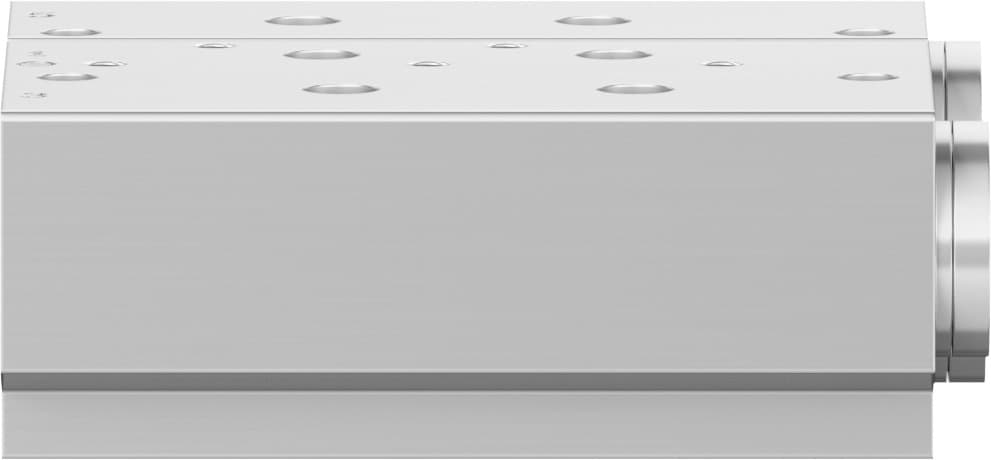

vabm-b10-25s-g38-2
Product ID:15230
Updated: 2026/7/15
Key Features
- 1Maximize space with a compact 27.5 mm grid design.
- 2Install flexibly using the optional mounting position.
- 3Ensure durability with RoHS-compliant wrought aluminum alloy.
- 4Resist moderate corrosion stress classified as CRC 2.
- 5Integrate seamlessly via G3/8 connections on key ports.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 438g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026261 |
Specifications may be subject to change without notice
