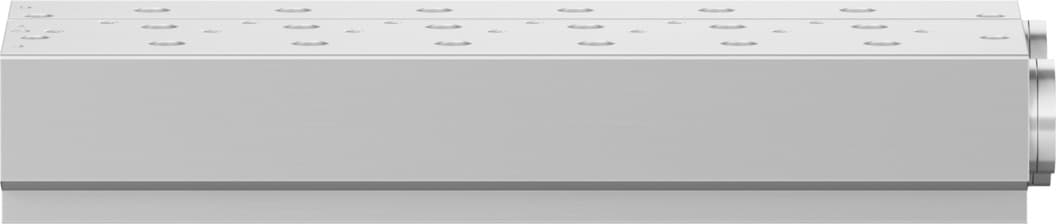

vabm-b10-25s-g38-5
Product ID:15232
Updated: 2026/4/4
Key Features
- 1Integrate compactly with a 27.5mm grid dimension for efficient pneumatic systems. 2、Choose flexible optional mounting positions to suit various application layouts. 3、Support up to 5 valve positions for enhanced system versatility and control. 4、Ensure reliable performance in moderate corrosive environments with CRC 2 resistance. 5、Comply with environmental regulations using RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 5 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 861g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026264 |
Specifications may be subject to change without notice
