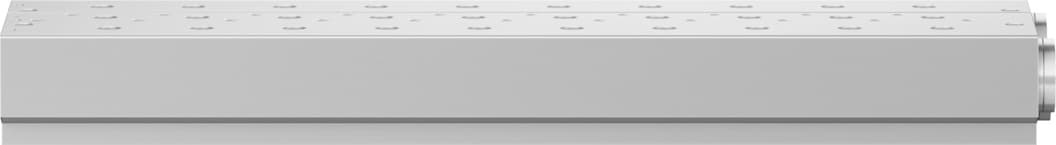

vabm-b10-25s-n38-10
Product ID:15240
Updated: 2026/4/4
Key Features
- 1Maximize space with a compact 27.5mm grid dimension. 2、Enable flexible installation using optional mounting positions. 3、Control complex systems with support for up to 10 valve positions. 4、Ensure durability in harsh conditions with moderate corrosion resistance. 5、Rely on reliable and sustainable RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1566g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 3 | 3/8 NPT | Pneumatic connection 5 | 3/8 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026278 |
Specifications may be subject to change without notice
