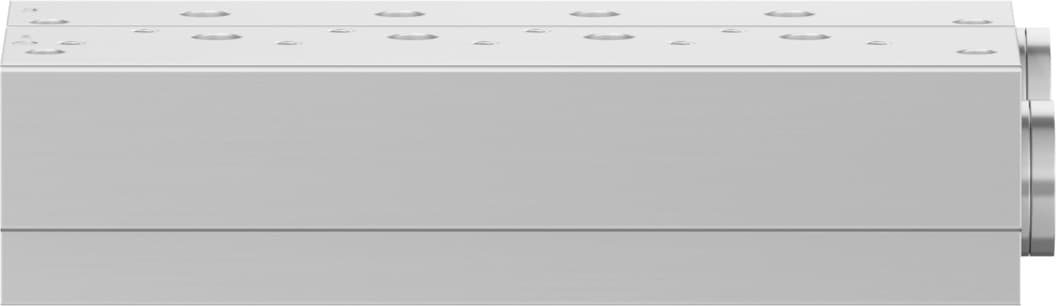

vabm-b10-25s-n38-3-p3
Product ID:15260
Updated: 2026/7/15
Key Features
- 1Control up to 3 valve positions for efficient fluid management.
- 2Utilize a 27.5mm grid dimension for precise pneumatic control.
- 3Select optional mounting positions for versatile installation.
- 4Resist moderate corrosion with CRC 2 class for reliability.
- 5Ensure durability with RoHS-compliant wrought aluminium alloy.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 488g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 3 | 3/8 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026307 |
Specifications may be subject to change without notice
