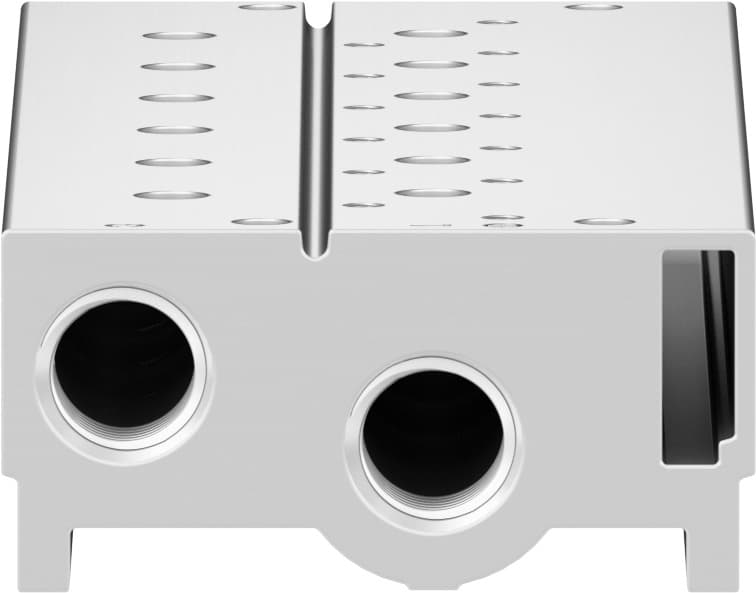

vabm-b10-25s-n38-6-p3
Product ID:15262
Updated: 2026/7/15
Key Features
- 1Maximize space with a compact 27.5 mm grid design.
- 2Integrate flexibly using optional mounting positions.
- 3Ensure durability with RoHS-compliant wrought aluminum alloy.
- 4Secure valve operations via reliable 3/8 NPT connections.
- 5Gain peace of mind with LABS conformity and a 2-year warranty.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 845g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 3 | 3/8 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026310 |
Specifications may be subject to change without notice
