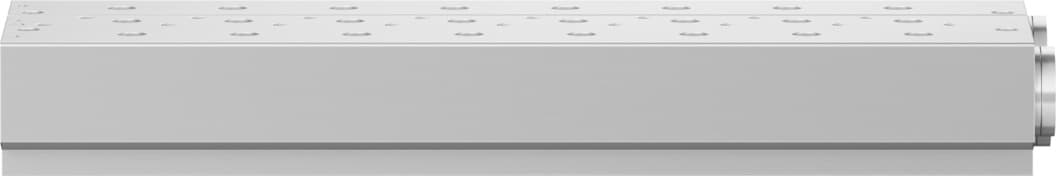

vabm-b10-25s-n38-8
Product ID:15239
Updated: 2026/4/4
Key Features
- 1Utilize a 27.5mm grid dimension for efficient space usage. 2、Choose optional mounting positions for flexible installation. 3、Support up to 8 valve positions for versatile control. 4、Resist moderate corrosion stress with CRC 2 rating. 5、Ensure compliance with RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 27.5mm | Mounting position | Any |
| Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1284g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 3 | 3/8 NPT | Pneumatic connection 5 | 3/8 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026276 |
Specifications may be subject to change without notice
