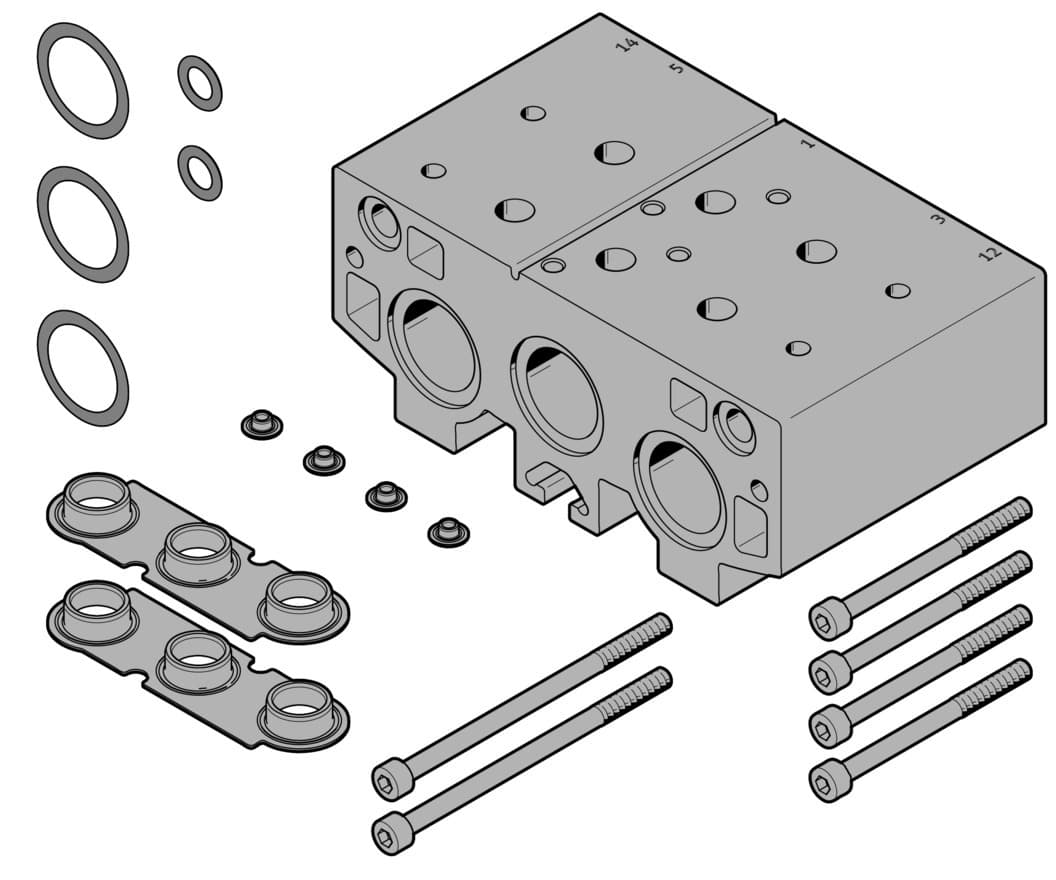

vabm-b10-30eee-g34-2
Product ID:15337
Updated: 2026/4/3
Key Features
- 1Equip with G3/4 pneumatic connections for reliable air flow management. 2、Achieve CRC 2 classification for durability in moderate corrosion. 3、Measure 32 mm in width to save space in constrained applications. 4、Mount with through-holes for flexible installation options. 5、Meet LABS (PWIS) and VDMA24364-B1/B2-L standards for compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1318g |
| Type of mounting | With through-hole | Pilot air port 12 | G1/8 |
| Pilot air port 14 | G1/8 | Pneumatic connection 1 | G3/4 |
| Pneumatic connection 3 | G3/4 | Pneumatic connection 5 | G3/4 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026431 |
Specifications may be subject to change without notice
