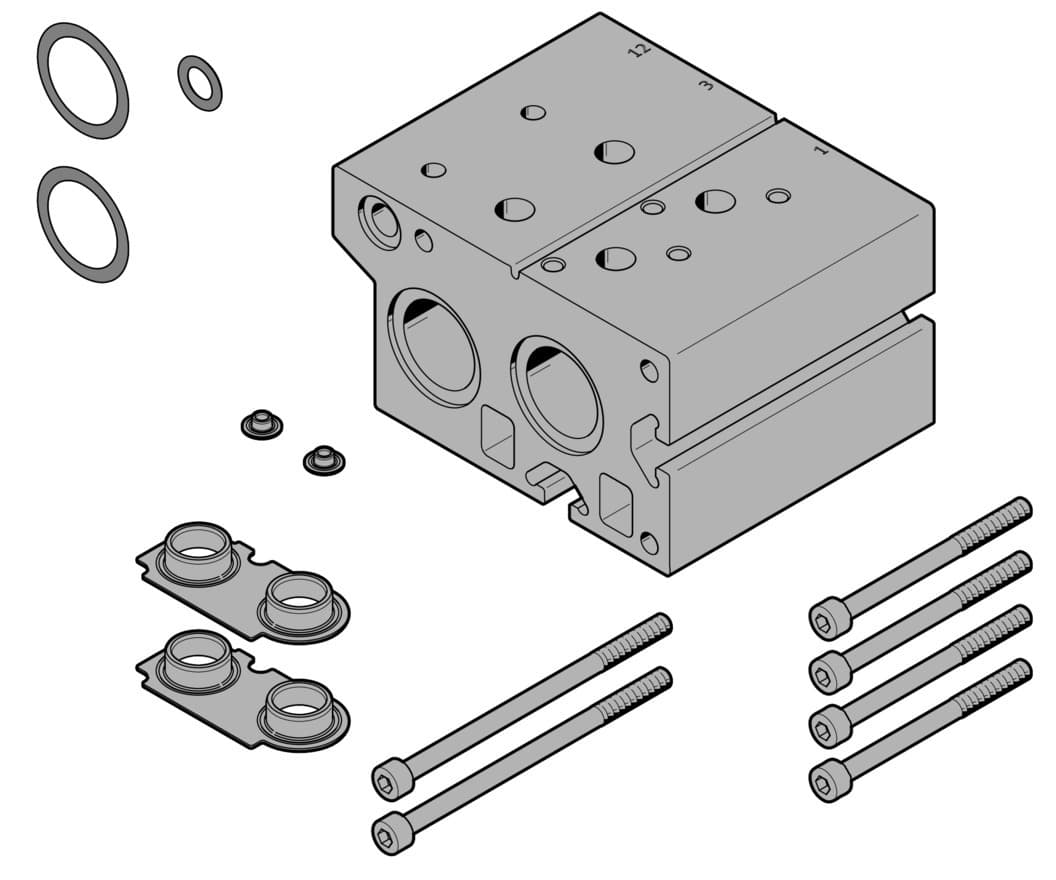

vabm-b10-30eee-g34-2-p3
Product ID:15338
Updated: 2026/7/4
Key Features
- 1Construct high-quality manifold blocks from durable wrought aluminum alloy.
- 2Mount flexibly in any position for simplified system integration.
- 3Connect pneumatics reliably with standard G3/4 port threads.
- 4Resist moderate corrosion effectively with CRC 2 classification.
- 5Utilize space efficiently with a compact 32mm grid dimension.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1111g |
| Type of mounting | With through-hole | Pilot air port 12 | G1/8 |
| Pneumatic connection 1 | G3/4 | Pneumatic connection 3 | G3/4 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026432 |
Specifications may be subject to change without notice
