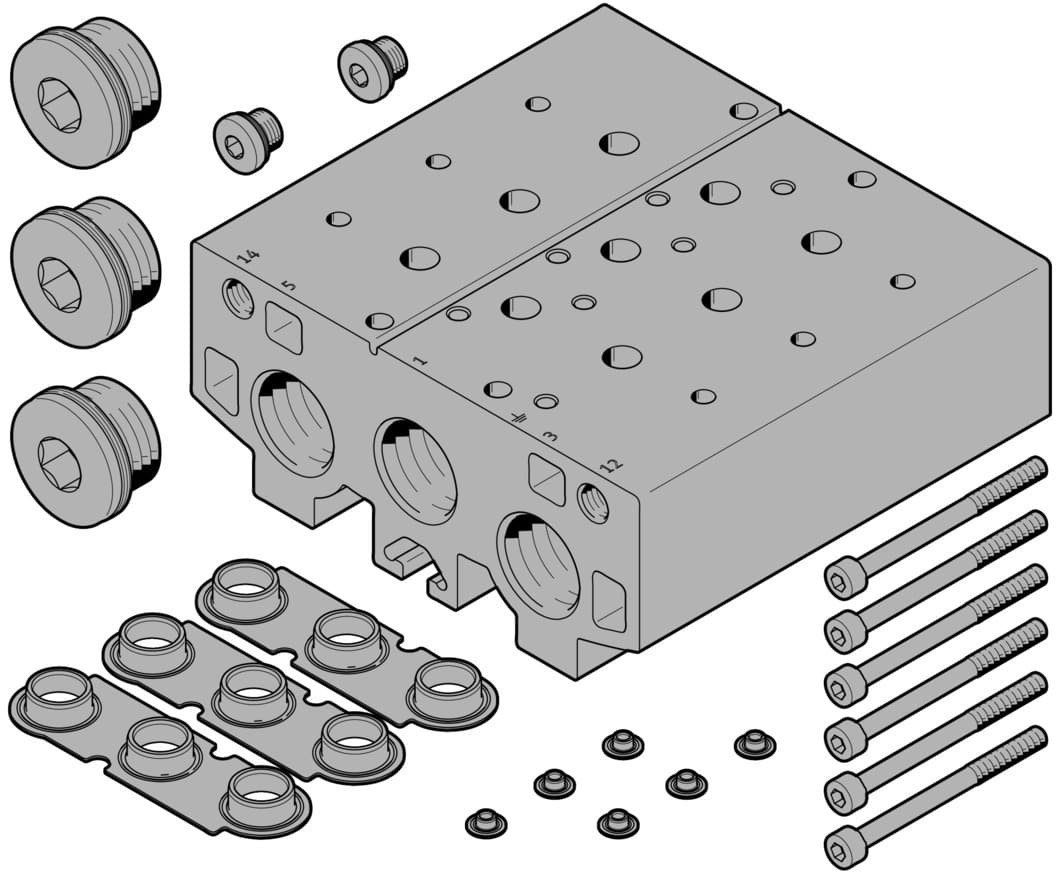

vabm-b10-30e-n34-2
Product ID:15294
Updated: 2026/4/3
Key Features
- 1Adopt a compact design with a 32mm grid dimension. 2、Ensure moderate corrosion resistance with CRC 2 classification. 3、Enable versatile installation via through-hole mounting. 4、Connect with two NPT 3/4-14 pneumatic ports. 5、Utilize RoHS-compliant wrought aluminum alloy construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1722g |
| Type of mounting | With through-hole | Pilot air port 12 | 1/8 NPT |
| Pilot air port 14 | 1/8 NPT | Pneumatic connection 1 | 3/4 NPT |
| Pneumatic connection 3 | 3/4 NPT | Pneumatic connection 5 | 3/4 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026368 |
Specifications may be subject to change without notice
