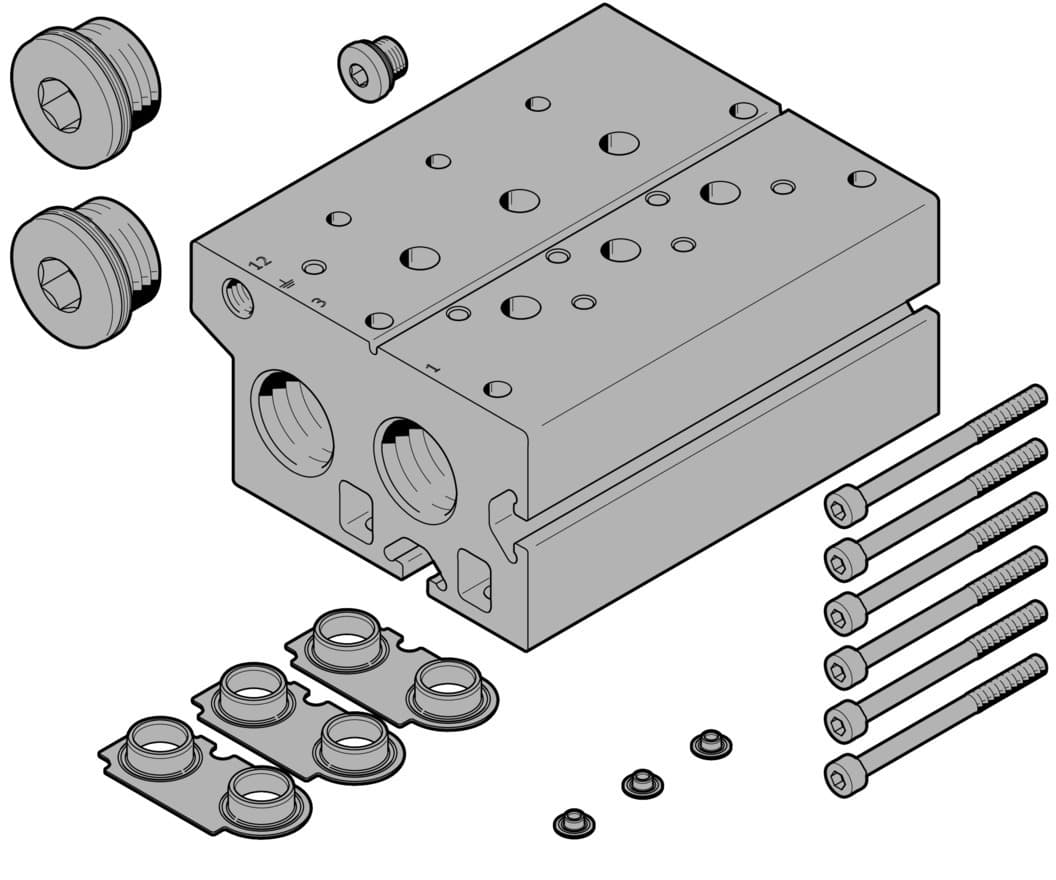

vabm-b10-30e-n34-9-p3
Product ID:15323
Updated: 2026/4/3
Key Features
- 1Maximize space with a compact 32mm grid design. 2、Install flexibly using optional mounting positions. 3、Control multiple lines with 9 valve positions. 4、Resist moderate corrosion with CRC 2 classification. 5、Ensure durability with RoHS-compliant aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 9 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 4330g |
| Type of mounting | With through-hole | Pilot air port 12 | 1/8 NPT |
| Pneumatic connection 1 | 3/4 NPT | Pneumatic connection 3 | 3/4 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026411 |
Specifications may be subject to change without notice
