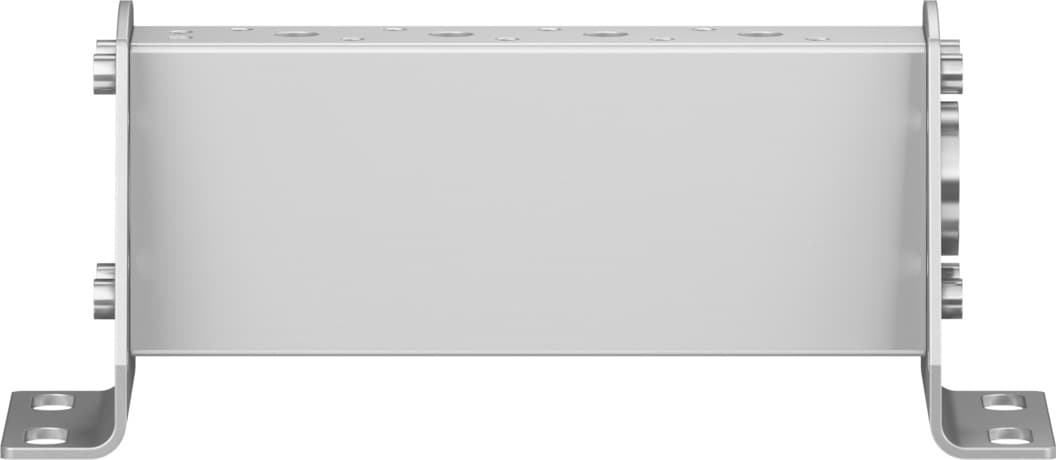

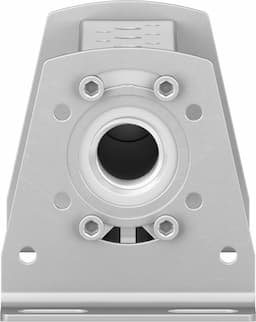

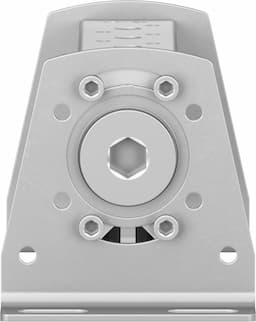

vabm-b10-30-g34-4-p53
Product ID:15277
Updated: 2026/4/3
Key Features
- 1Utilize a 32 mm grid for efficient space optimization. 2、Mount optionally on either side for flexible installation. 3、Achieve moderate corrosion resistance with CRC class 2. 4、Ensure LABS (PWIS) conformity to VDMA24364-B1/B2-L standards. 5、Receive free shipping on orders over $1,000 and lifetime technical support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1135g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/4 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026340 |
Specifications may be subject to change without notice
