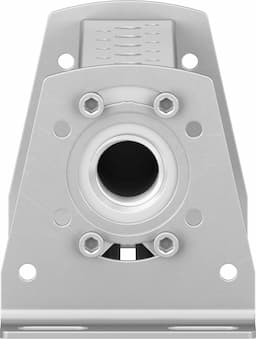

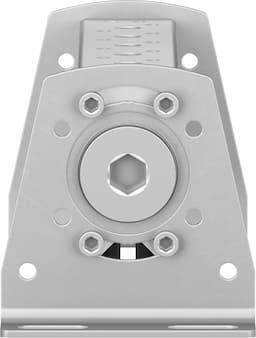

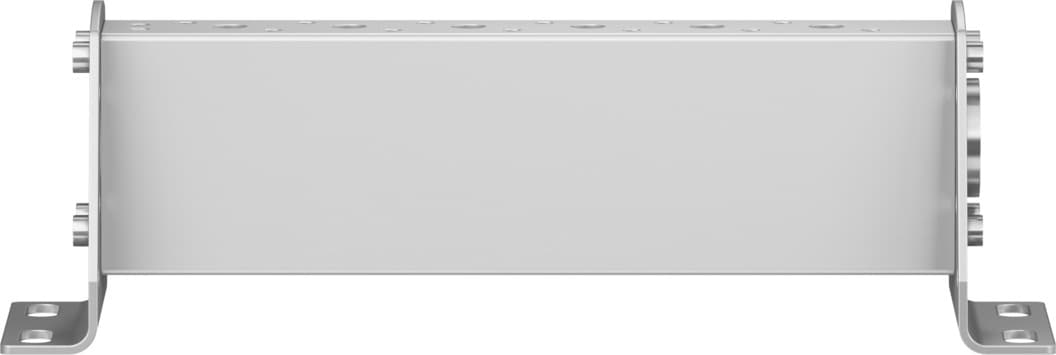

vabm-b10-30-g34-5-p53
Product ID:15278
Updated: 2026/7/4
Key Features
- 1Utilize a compact 32mm grid for space-efficient pneumatic system design.
- 2Select optional mounting positions for flexible installation in various setups.
- 3Configure up to 5 valve positions for versatile pneumatic connections.
- 4Resist moderate corrosion stress with CRC 2 classification for durability.
- 5Ensure environmental compliance with RoHS-approved wrought aluminium alloy.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 5 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1293g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | G3/4 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026341 |
Specifications may be subject to change without notice
