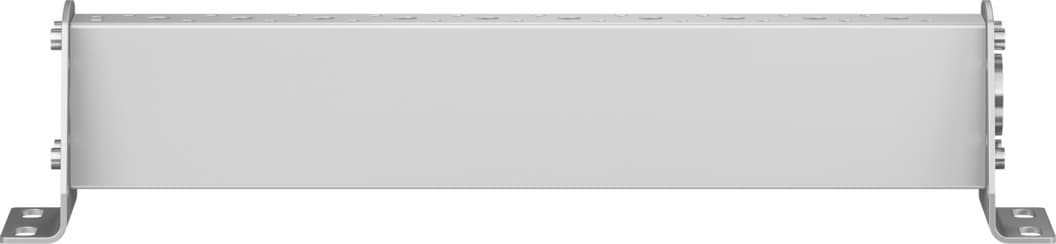

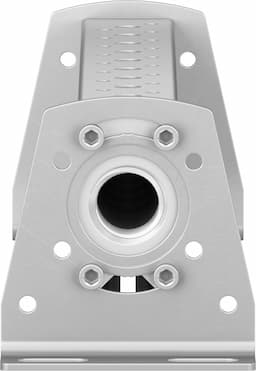

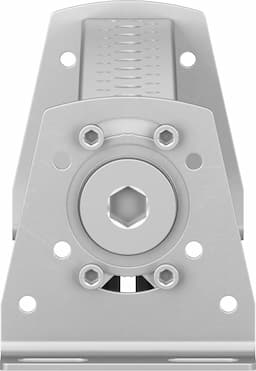

vabm-b10-30-n34-10-p53
Product ID:15284
Updated: 2026/4/3
Key Features
- 1Support up to 10 valve positions for complex pneumatic system layouts. 2、Achieve CRC 2 corrosion resistance for moderate-stress environments. 3、Construct with durable wrought aluminum alloy for long-term reliability. 4、Mount flexibly using an optional bracket for easy installation. 5、Comply with RoHS standards for environmental and regulatory safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 10 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 2085g |
| Type of mounting | With mounting bracket | Pneumatic connection 1 | 3/4 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026355 |
Specifications may be subject to change without notice
