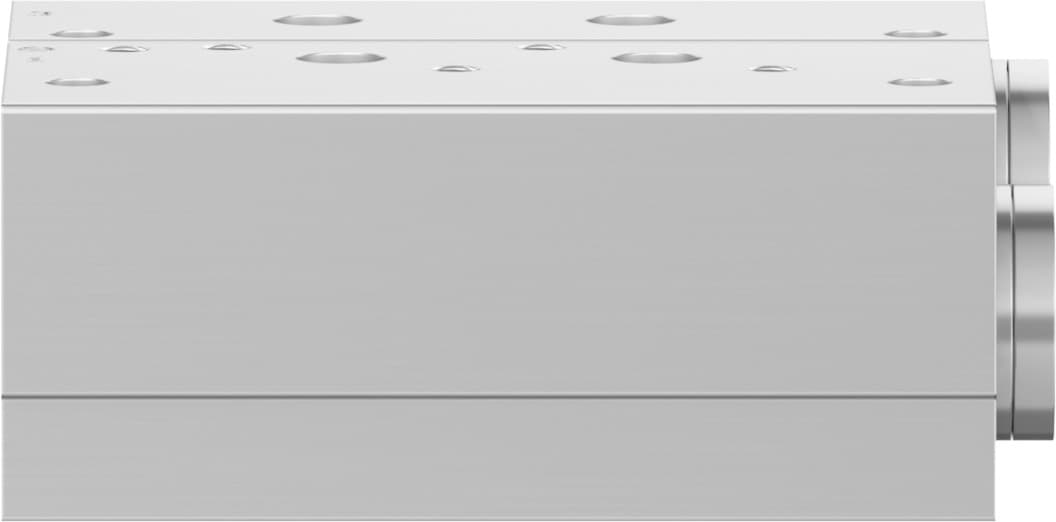

vabm-b10-30s-g12-2-p3
Product ID:15325
Updated: 2026/4/3
Key Features
- 1Ensure reliable G1/2 pneumatic connections for efficient operation. 2、Customize your setup with optional mounting positions for flexibility. 3、Provide moderate corrosion protection with class 2 resistance to extend lifespan. 4、Align with environmental regulations using RoHS-compliant materials for safety. 5、Construct from durable wrought aluminium alloy for robustness in demanding applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 652g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026413 |
Specifications may be subject to change without notice
