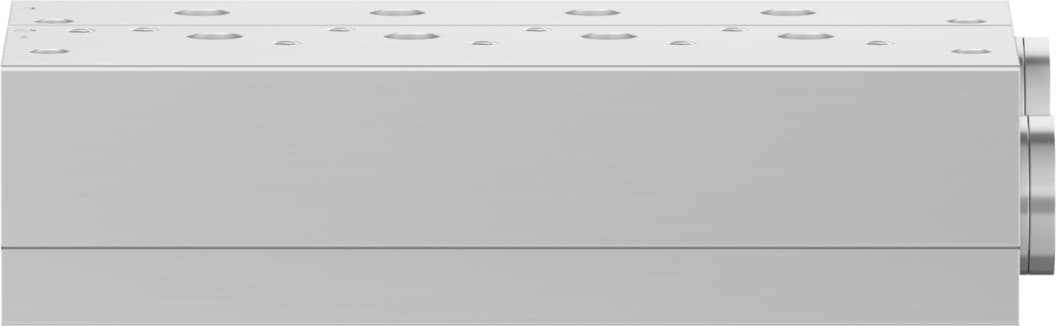

vabm-b10-30s-g12-4-p3
Product ID:15326
Updated: 2026/4/3
Key Features
- 1Optimize space with a compact 32mm grid dimension. 2、Integrate easily using optional mounting positions. 3、Resist moderate corrosion with CRC 2 classification. 4、Utilize strong, lightweight wrought aluminum alloy. 5、Ensure reliable flow via G1/2 pneumatic connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1093g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026415 |
Specifications may be subject to change without notice
