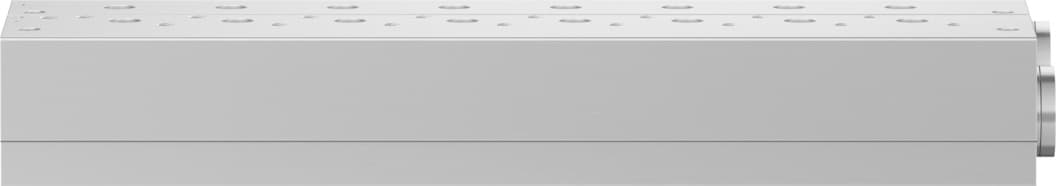

vabm-b10-30s-g12-8-p3
Product ID:15329
Updated: 2026/4/3
Key Features
- 1Construct from durable wrought aluminum alloy for reliable performance. 2、Configure with optional mounting positions for versatile installation. 3、Provide moderate corrosion stress corrosion resistance class cRC. 4、Comply with VDMA24364-B1/B2-L LABS (PWIS) industry standards. 5、Integrate easily with G1/2 pneumatic connections on port 1 and 3.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 8 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1973g |
| Type of mounting | With through-hole | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026419 |
Specifications may be subject to change without notice
