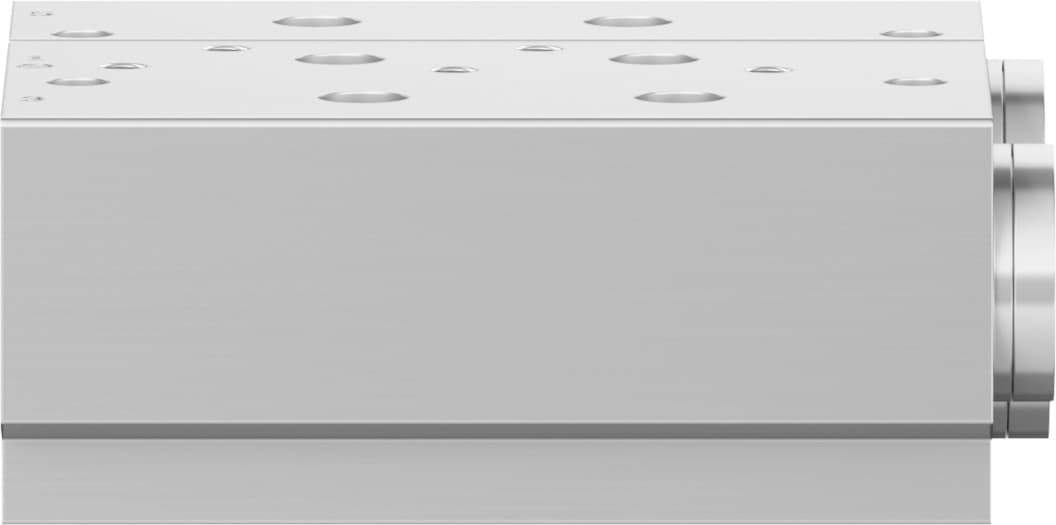

vabm-b10-30s-n12-2
Product ID:15310
Updated: 2026/4/3
Key Features
- 1Utilize a 32mm grid dimension for precise pneumatic control. 2、Select optional mounting positions for flexible installation. 3、Manage fluids efficiently with 2 valve positions. 4、Resist moderate corrosion (CRC 2) for durability. 5、Ensure reliability with RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 759g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 5 | 1/2 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026386 |
Specifications may be subject to change without notice
