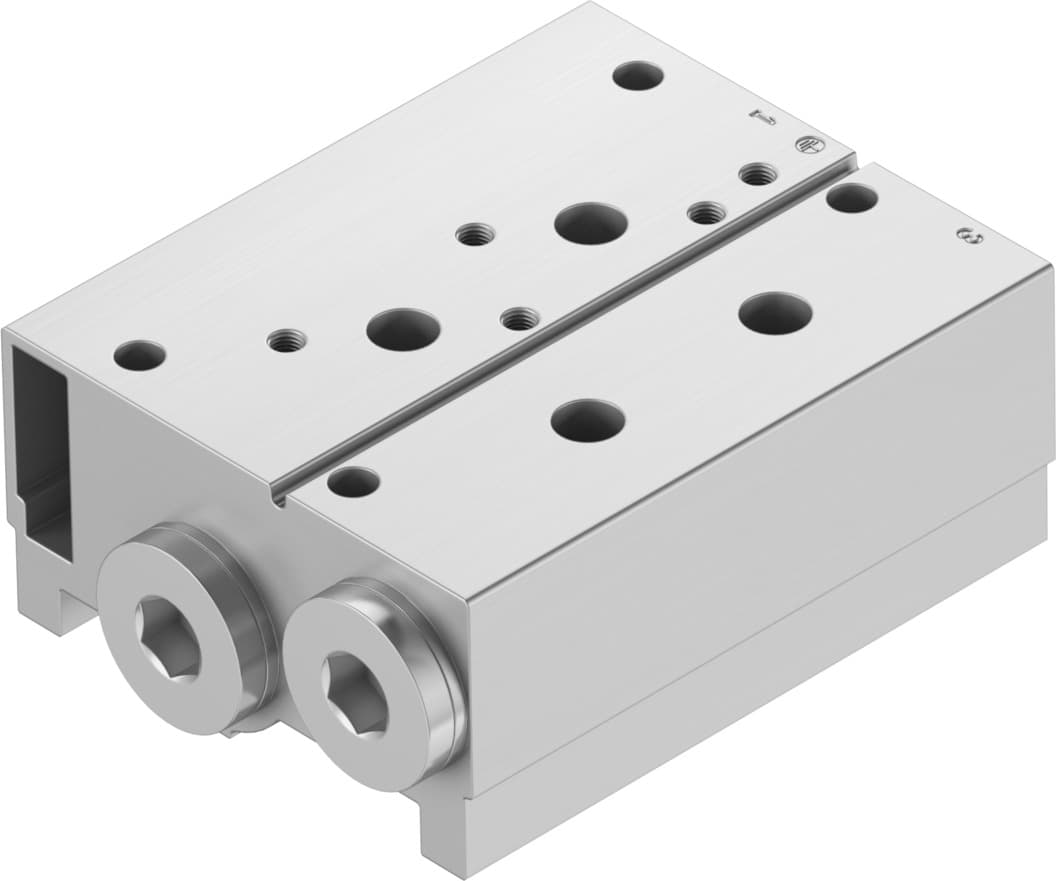

vabm-b10-30s-n12-2-p3
Product ID:15331
Updated: 2026/4/3
Key Features
- 1Maximize panel density with a compact 32mm grid design. 2、Install flexibly using the optional mounting positions. 3、Ensure long-term durability with RoHS-compliant wrought aluminum alloy. 4、Secure reliable pneumatic flow through 1/2 NPT ports 1 and 3. 5、Operate in moderate-stress environments with CRC 2 corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 2 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 652g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 3 | 1/2 NPT | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 8026422 |
Specifications may be subject to change without notice
