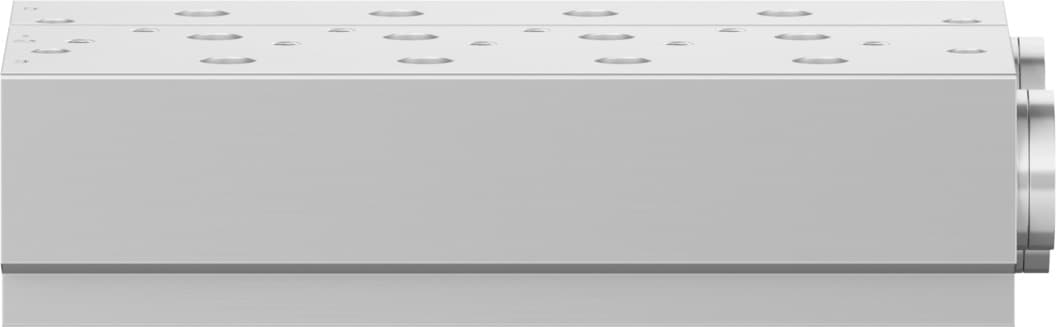

vabm-b10-30s-n12-4
Product ID:15311
Updated: 2026/4/3
Key Features
- 1Optimize space with a compact 32mm grid dimension. 2、Select optional mounting positions for versatile installation. 3、Control up to 4 valve positions for flexible pneumatic setups. 4、Ensure durability with moderate corrosion resistance class CRC 2. 5、Meet environmental standards using RoHS-compliant wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 4 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1267g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 5 | 1/2 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026388 |
Specifications may be subject to change without notice
