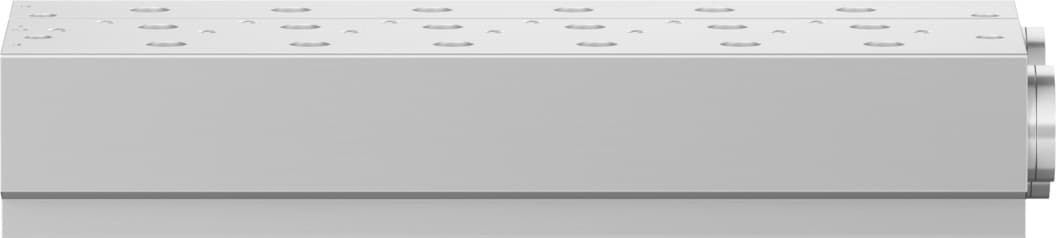

vabm-b10-30s-n12-6
Product ID:15312
Updated: 2026/7/4
Key Features
- 1Utilize a 32mm grid for efficient space saving.
- 2Choose optional mounting positions for flexible installation.
- 3Support up to 6 valve positions for complex systems.
- 4Resist moderate corrosion with CRC 2 rating.
- 5Ensure environmental safety with RoHS-compliant aluminium.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 32mm | Mounting position | Any |
| Max. no. of valve positions | 6 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Product weight | 1776g |
| Type of mounting | With through-hole | Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 5 | 1/2 NPT |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 8026390 |
Specifications may be subject to change without notice
