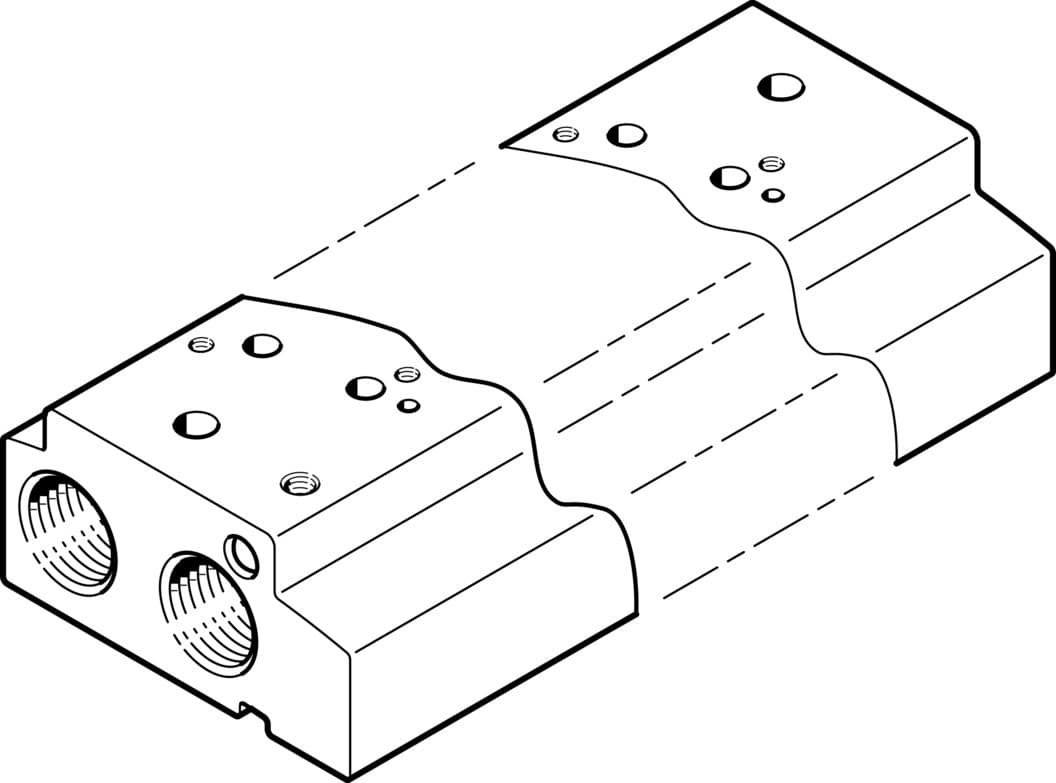

vabm-c7-12g-g18-3
Product ID:11927
Updated: 2026/4/3
Key Features
- 1Support up to 3 valve positions for compact pneumatic systems. 2、Provide moderate corrosion resistance (Class 2) for durability. 3、Construct from RoHS-compliant wrought aluminum alloy. 4、Ensure LABS (PWIS) and VDMA24364-B2-L standard compliance. 5、Feature G1/8 and M7 connections for efficient operations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Max. no. of valve positions | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Product weight | 105g |
| Pilot air port 12 | M3 | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 3 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 552662 |
Specifications may be subject to change without notice
