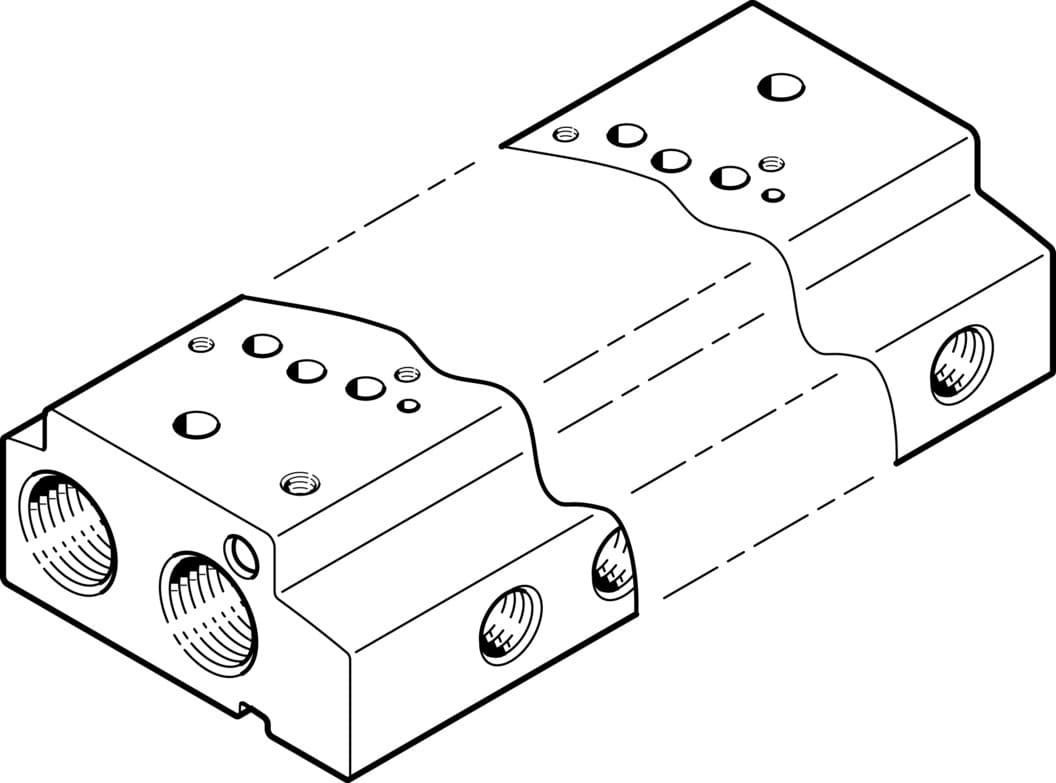

vabm-c7-12w-g18-9
Product ID:11680
Updated: 2026/4/3
Key Features
- 1Support up to 9 valve positions for versatile system layouts. 2、Provide moderate corrosion resistance (class 2) for durability. 3、Weigh only 222 grams for a lightweight and compact design. 4、Feature G1/8 and M7 ports for reliable pneumatic connections. 5、Include an M3 pilot air port for VOVG valve compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Max. no. of valve positions | 9 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Product weight | 222g |
| Pilot air port 12 | M3 | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M7 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 549655 |
Specifications may be subject to change without notice
