Key Features
- 1Accommodate up to 28 valve positions for extensive control.
- 2Ensure precise valve alignment with a 12 mm grid dimension.
- 3Meet strict standards with CE, EMC, and RoHS compliance.
- 4Utilize corrosion-resistant wrought aluminum alloy for durability.
- 5Connect easily via G1/4 ports and I-Port interface.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 12mm | Max. no. of valve positions | 28 |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 0.6Nm |
| Max. tightening torque for wall mounting | 5Nm | Product weight | 1775g |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 1247985 |
Specifications may be subject to change without notice

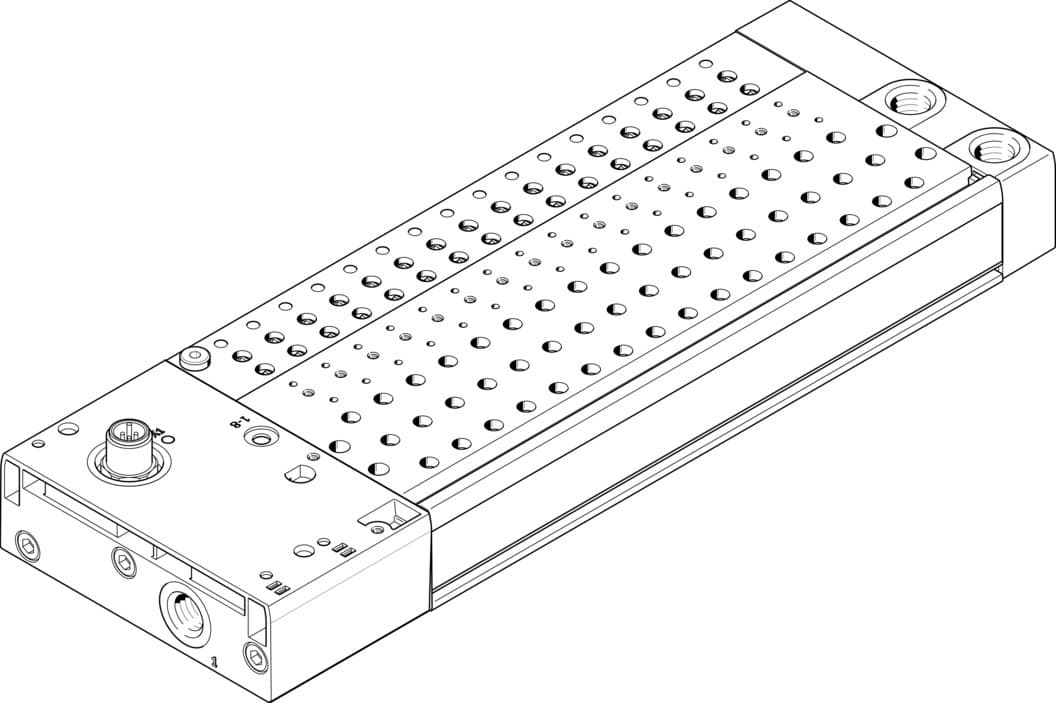

Still deciding on vabm-c8-12e-g14-28-pt-l?
