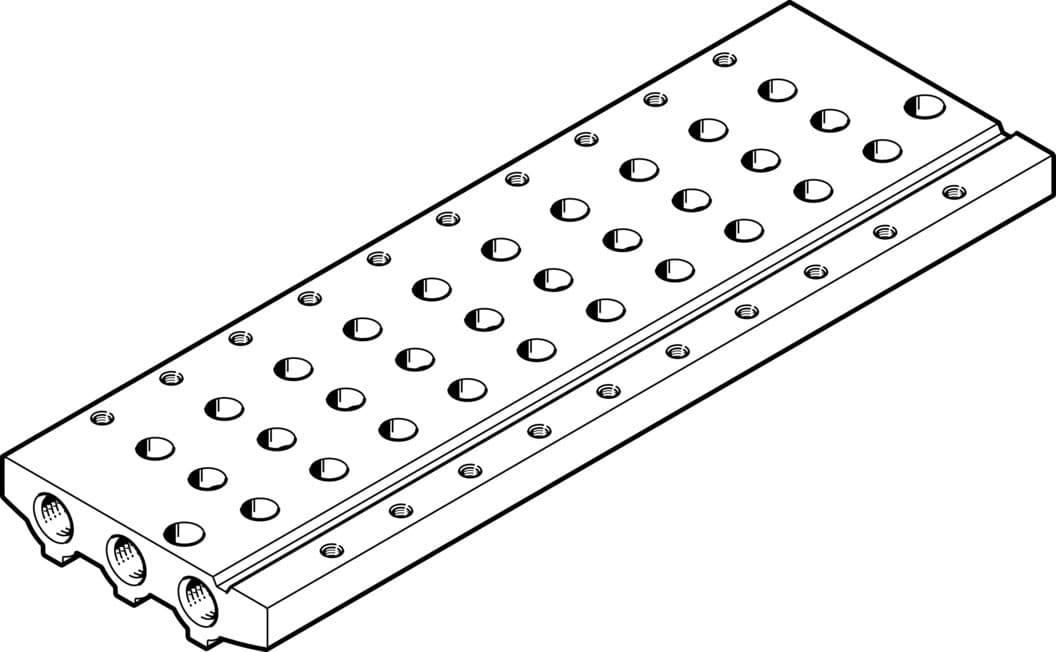

vabm-l1-10as-m5-10
Product ID:13315
Updated: 2026/7/17
Key Features
- 1Position up to 16 valves precisely on a 10.5 mm grid.
- 2Operate reliably across a wide -0.9 to 10 bar pressure range.
- 3Ensure safety with RCM, c UL US, and c CSA US certifications.
- 4Benefit from durable, long-lasting RoHS-compliant aluminum alloy construction.
- 5Simplify complex pneumatic system design and integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 90g |
| Pneumatic connection 1 | M5 | Pneumatic connection 3 | M5 |
| Pneumatic connection 5 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566530 |
Specifications may be subject to change without notice
