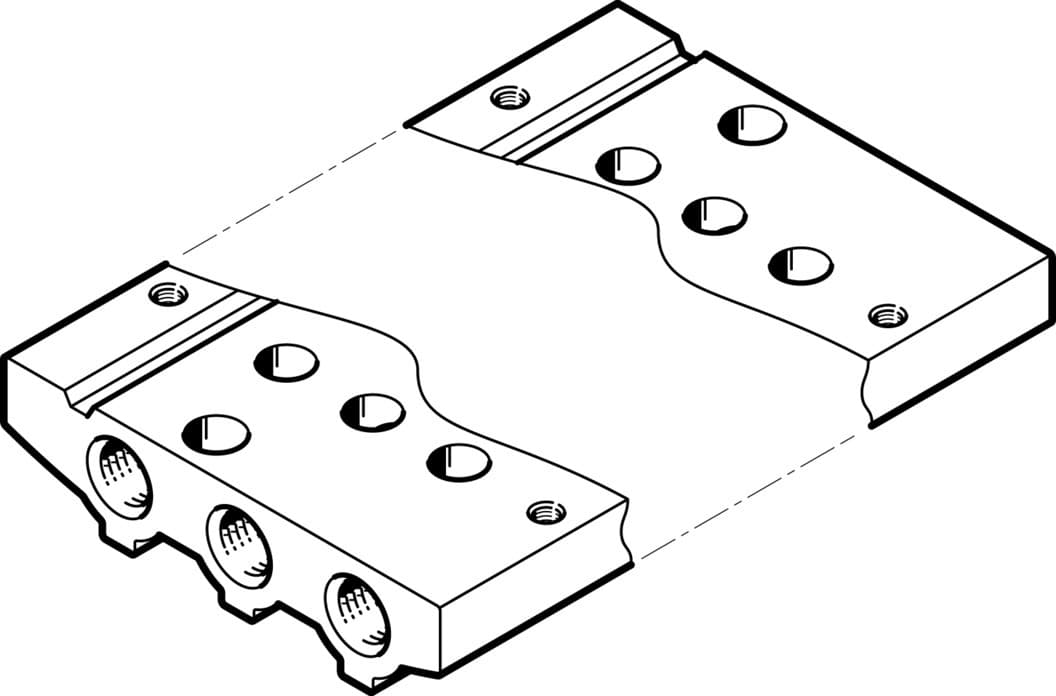

vabm-l1-10as-m5-3
Product ID:13309
Updated: 2026/4/4
Key Features
- 1Achieve precise valve positioning with a 10.5mm grid dimension. 2、Support complex systems with up to 16 valve positions. 3、Handle robust operating pressures from -0.9 to 10 bar. 4、Meet RCM, c CSA us (OL), and c UL us standards. 5、Ensure durability with RoHS-compliant wrought aluminium alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 34g |
| Pneumatic connection 1 | M5 | Pneumatic connection 3 | M5 |
| Pneumatic connection 5 | M5 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566523 |
Specifications may be subject to change without notice
