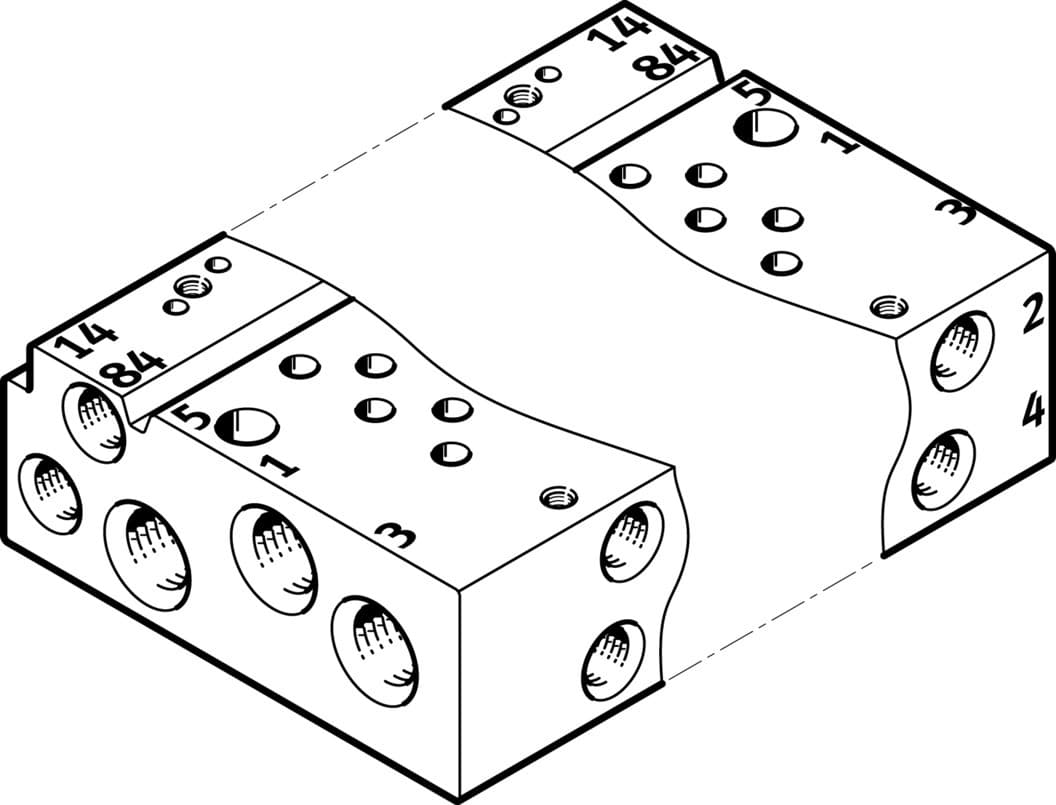

vabm-l1-10aw-m7-14
Product ID:13327
Updated: 2026/4/4
Key Features
- 1Support up to 16 valve positions for complex pneumatic circuits. 2、Feature a compact 10.5 mm grid dimension for space-saving layouts. 3、Handle operating pressures from -0.9 to 10 bar reliably. 4、Offer moderate corrosion resistance (CRC 2) for durability. 5、Utilize RoHS-compliant wrought aluminum alloy for sustainability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 1.5Nm | Product weight | 276g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | M7 | Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | M7 | Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566556 |
Specifications may be subject to change without notice
