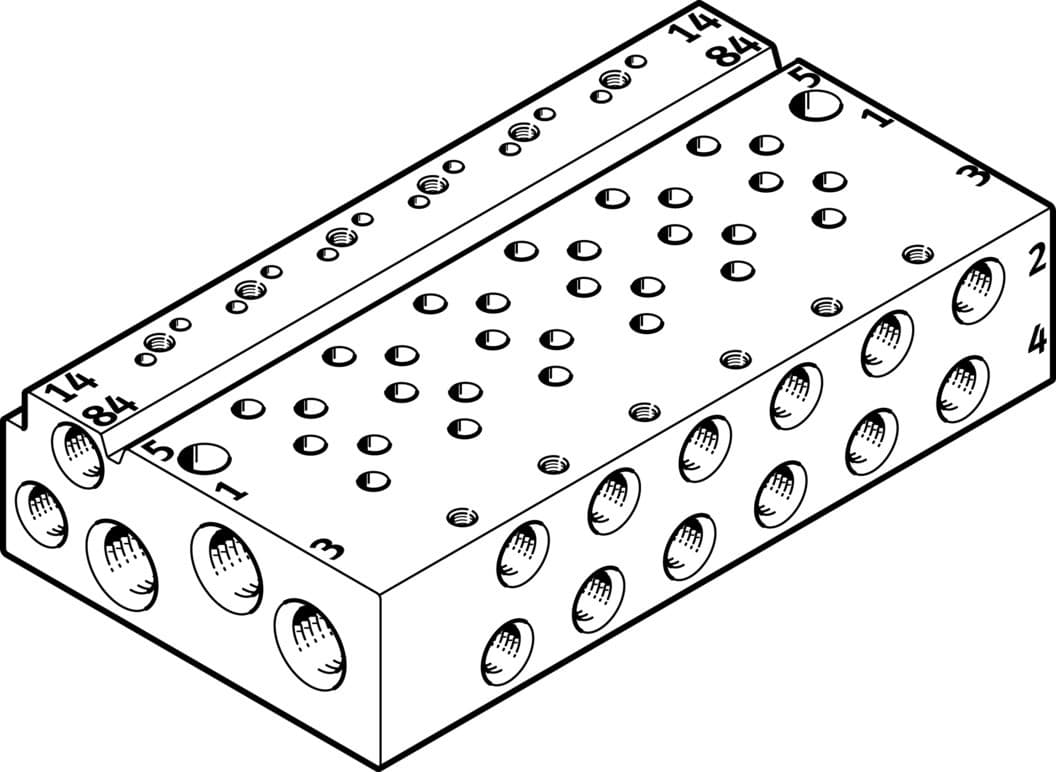

vabm-l1-10aw-m7-6
Product ID:13322
Updated: 2026/4/4
Key Features
- 1Maximize valve density with 16 positions in a compact 10.5 mm width. 2、Ensure durability with RoHS-compliant wrought aluminum alloy construction. 3、Operate reliably across a -0.9 to 10 bar pressure range. 4、Simplify installation and maintenance using standard M7 and M5 connections. 5、Integrate seamlessly into tight spaces for versatile control setups.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 1.5Nm | Product weight | 132g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | M7 | Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | M7 | Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | M7 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566550 |
Specifications may be subject to change without notice
