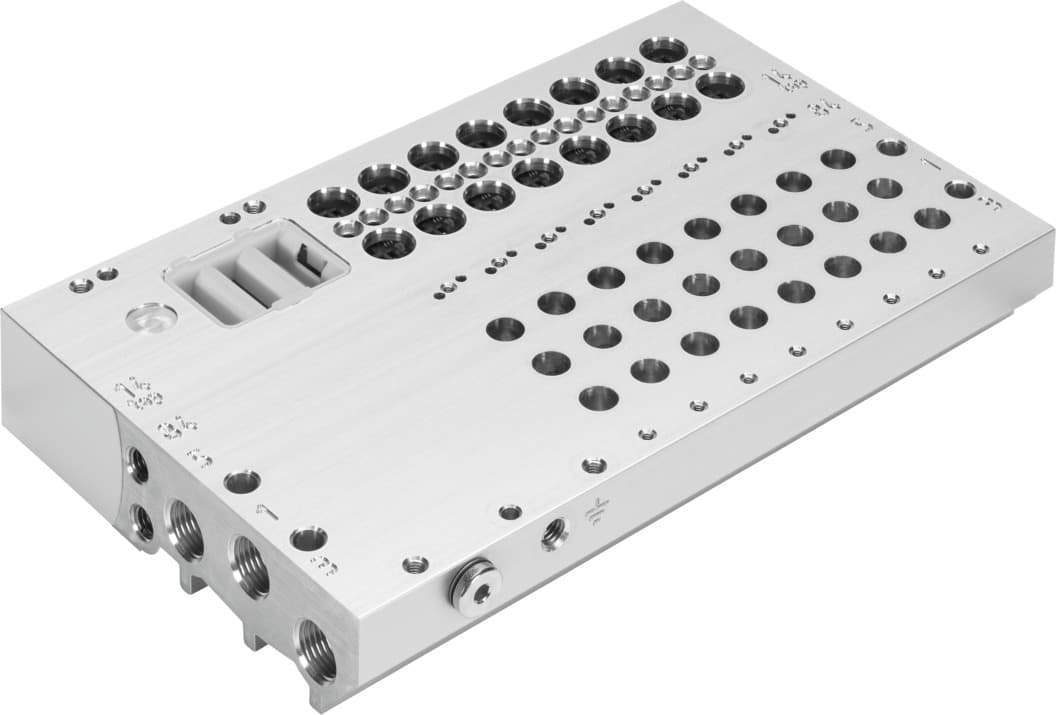

vabm-l1-10g-g18-7-gr
Product ID:13800
Updated: 2026/7/15
Key Features
- 1Support up to 7 valve positions for complex control systems.
- 2Ensure precise alignment with a 10.5 mm grid dimension.
- 3Install flexibly with optional mounting positions.
- 4Resist corrosion and meet RoHS environmental standards.
- 5Integrate seamlessly with Festo VTUG series and 10mm valves.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Mounting position | Any |
| Max. no. of valve positions | 7 | Certification | c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Product weight | 431g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 573426 |
Specifications may be subject to change without notice
