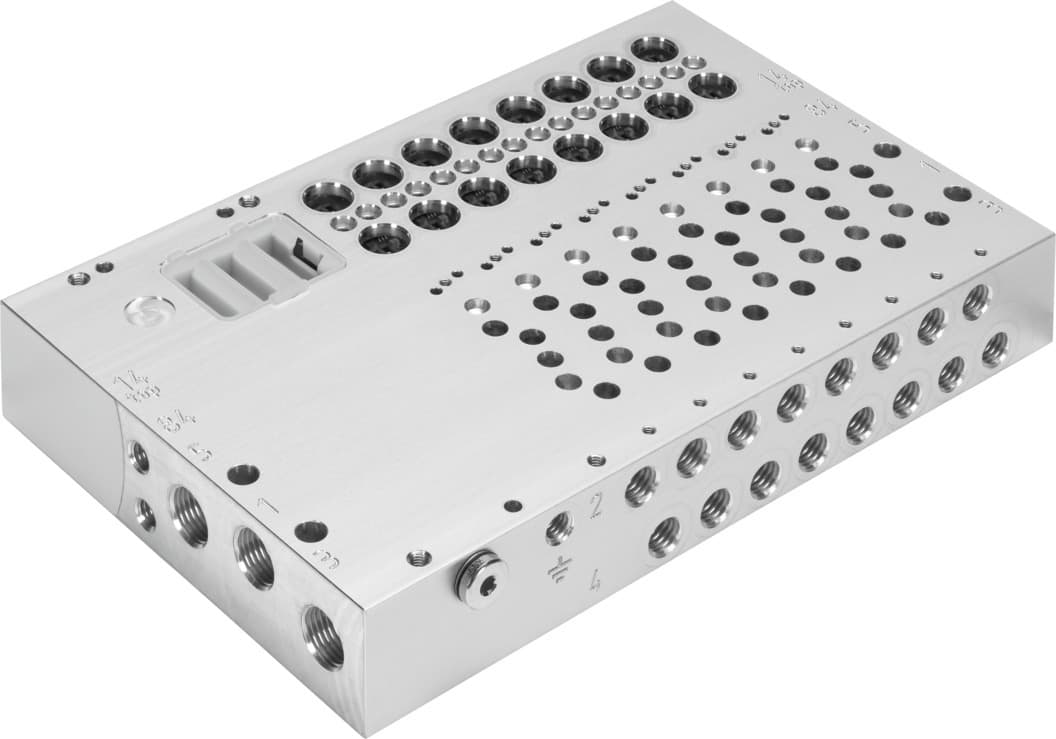

vabm-l1-10hw-g18-16-m-gr
Product ID:13904
Updated: 2026/4/4
Key Features
- 1Maximize valve density with 16 positions on a single rail. 2、Achieve precise alignment using the 10.5mm grid dimension. 3、Install flexibly with optional mounting positions. 4、Resist moderate corrosion (CRC 2) for durable operation. 5、Operate reliably across a -20°C to 60°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Mounting position | Any |
| Max. no. of valve positions | 16 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 6 according to ISO 14644-1 | Storage temperature | -20°C 60°C |
| Product weight | 844g | Pilot air port 12/14 | M5 |
| Pilot exhaust air port 82/84 | M5 | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M7 | Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | M7 | Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 573930 |
