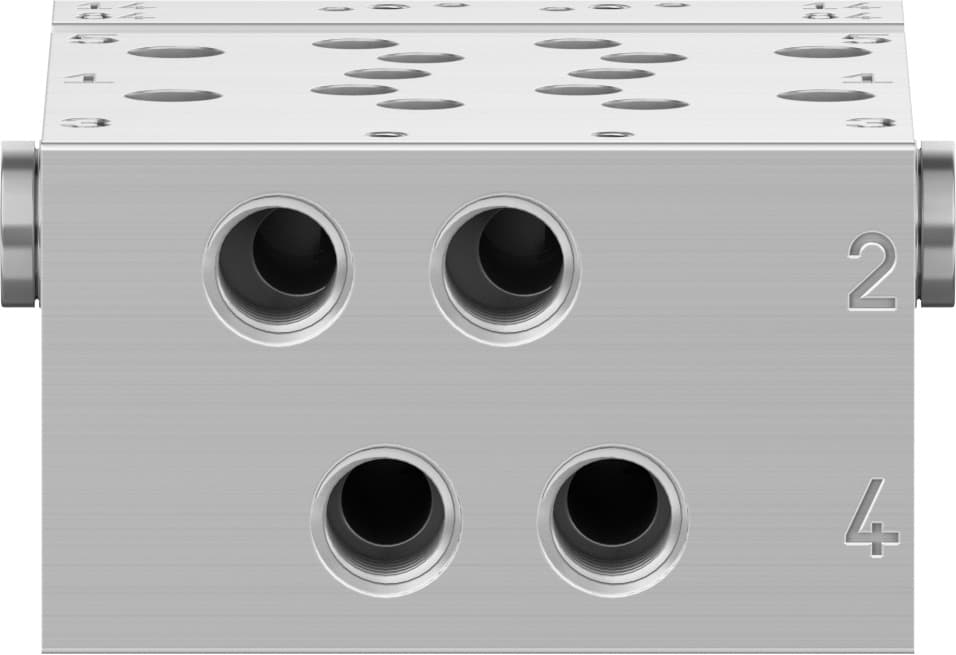

vabm-l1-10hw-g18-2
Product ID:13352
Updated: 2026/4/4
Key Features
- 1Equip your system with G1/8 and M7 ports for reliable pneumatic connections. 2、Construct the rail from durable wrought aluminum alloy for corrosion resistance. 3、Meet Class 6 cleanroom standards per ISO 14644-1 for sensitive environments. 4、Utilize it for manifold assemblies and sub-base valves for design flexibility. 5、Ensure environmental safety with RoHS compliance and no SVHC substances.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 107g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M7 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M7 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566606 |
Specifications may be subject to change without notice
