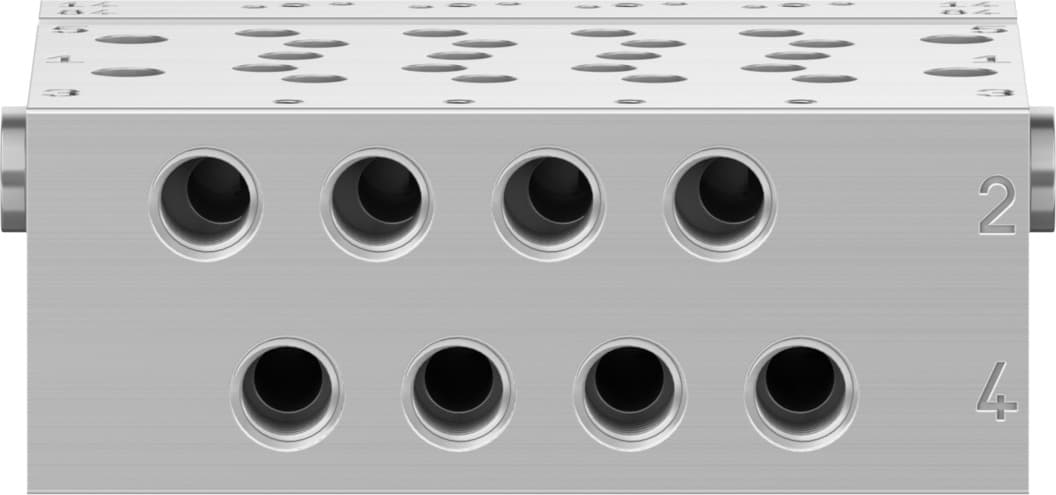

vabm-l1-10hw-g18-3
Product ID:13353
Updated: 2026/7/17
Key Features
- 1Ensure reliable performance with Corrosion Resistance Class 2 for demanding environments.
- 2Achieve flexible installation using versatile optional mounting positions.
- 3Support high system pressure up to 1 MPa for robust operation.
- 4Meet environmental standards with RoHS-compliant wrought aluminum alloy.
- 5Simplify handling and integration via a compact, lightweight 135-gram design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 135g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M7 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M7 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566607 |
Specifications may be subject to change without notice
