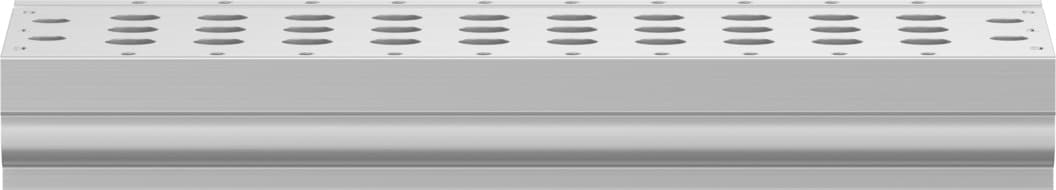

vabm-l1-10s-g18-14
Product ID:13339
Updated: 2026/4/4
Key Features
- 1Optimize pneumatic control with 16 valve positions for complex systems. 2、Ensure cleanroom compliance with ISO 14644-1 Class 5 certification. 3、Reduce corrosion risk with CRC class 2 resistant aluminum construction. 4、Meet environmental standards using RoHS-compliant wrought aluminum alloy. 5、Achieve precise pressure control from -0.09 to 1 MPa.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 246g |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 566568 |
Specifications may be subject to change without notice
