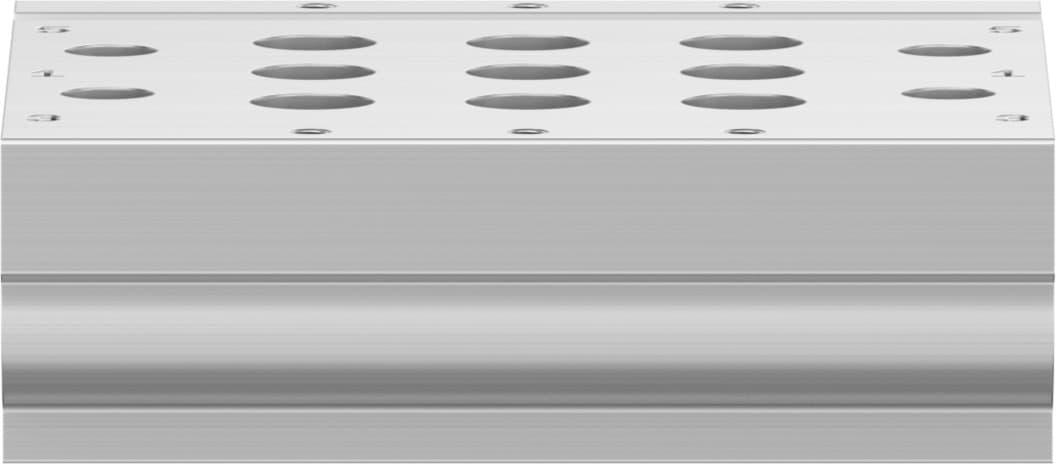

vabm-l1-10s-g18-3
Product ID:13330
Updated: 2026/4/4
Key Features
- 1Maximize space with a compact 10.5 mm grid design. 2、Control complex systems using up to 16 valve positions. 3、Ensure durability with wrought aluminum alloy construction. 4、Operate reliably across a wide -0.9 to 10 bar pressure range. 5、Meet safety standards with CSA and UL certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 81g |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 566559 |
Specifications may be subject to change without notice
