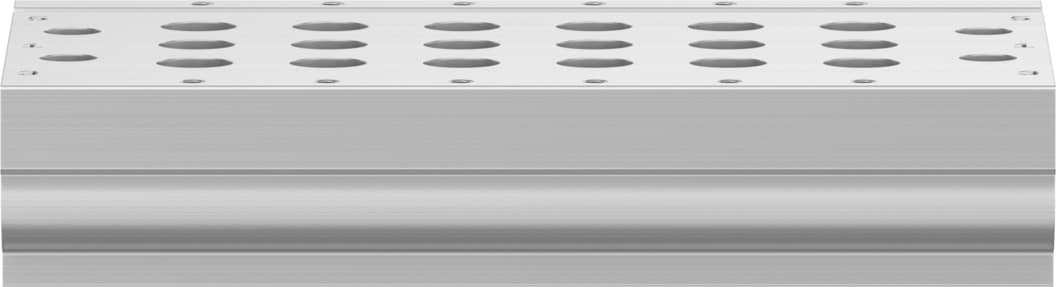

vabm-l1-10s-g18-6
Product ID:13333
Updated: 2026/4/4
Key Features
- 1Maximize flexibility with 10.5mm grid dimension for versatile pneumatic layouts. 2、Support up to 16 valve positions for diverse application configurations. 3、Handle pressures up to 10 bar for reliable high-performance operations. 4、Meet strict safety standards with RCM, CSA, and UL recognitions. 5、Ensure environmental compliance using RoHS-compliant aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Cleanroom class | Class 5 according to ISO 14644-1 |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 126g |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant | Manifold rail material | Wrought aluminum alloy |
| Manufacturer ID | 566562 |
Specifications may be subject to change without notice
