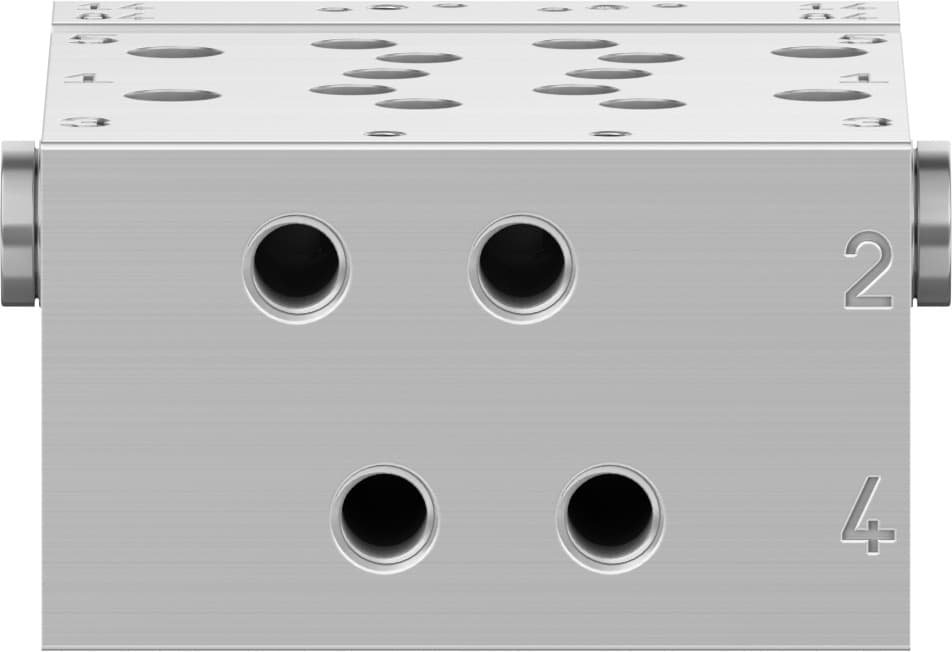

vabm-l1-10w-g18-2
Product ID:13341
Updated: 2026/4/4
Key Features
- 1Achieve corrosion resistance class 2 for durability in moderate-stress environments. 2、Simplify installation with versatile through-hole mounting options. 3、Ensure environmental compliance by meeting strict EU RoHS standards. 4、Utilize a high-strength wrought aluminum alloy body for reliable performance. 5、Configure flexible systems with semi-in-line and sub-base valve compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 107g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566582 |
Specifications may be subject to change without notice
