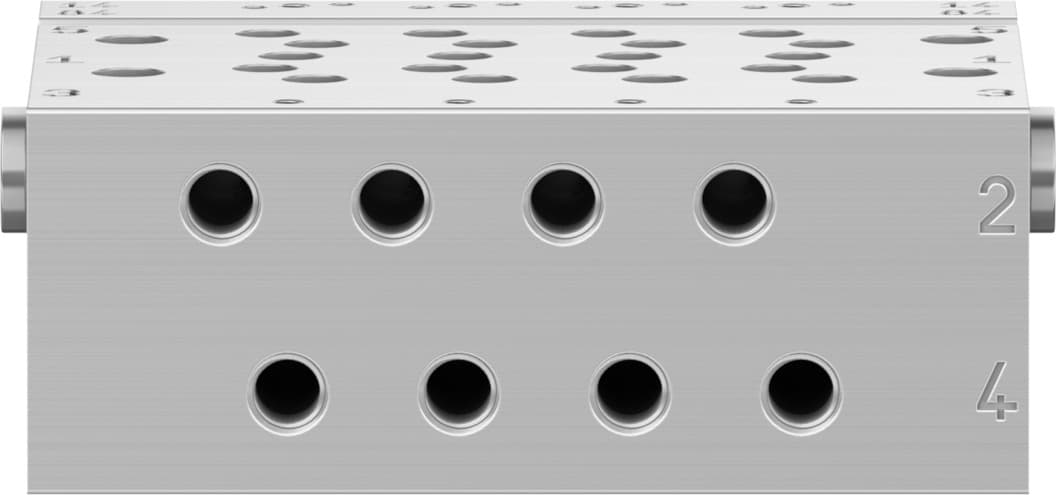

vabm-l1-10w-g18-3
Product ID:13342
Updated: 2026/4/4
Key Features
- 1Support up to 16 valve positions for complex pneumatic systems. 2、Ensure durability with moderate corrosion resistance in industrial environments. 3、Operate from -0.9 to 10 bar for a wide range of applications. 4、Meet safety standards with RCM and UL (OL) certifications. 5、Utilize a 10.5 mm grid dimension for space-constrained installations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 135g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566583 |
Specifications may be subject to change without notice
