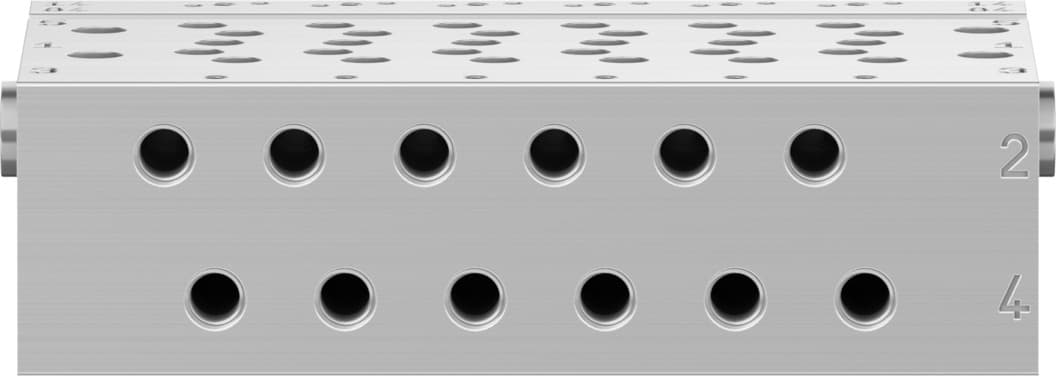

vabm-l1-10w-g18-5
Product ID:13344
Updated: 2026/7/17
Key Features
- 1Achieve precise valve positioning with a 10.5mm grid dimension.
- 2Support complex control systems with up to 16 valve positions.
- 3Ensure reliable performance across -0.09 to 10 bar operating pressure.
- 4Meet RCM, C UL US (OL), and VDMA24364-B1/B2-L standards.
- 5Utilize long-lasting RoHS-compliant wrought aluminum alloy construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 191g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566585 |
Specifications may be subject to change without notice
