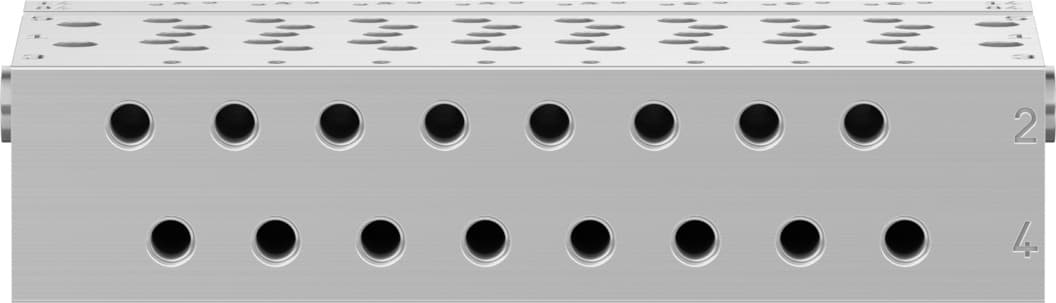

vabm-l1-10w-g18-7
Product ID:13346
Updated: 2026/4/4
Key Features
- 1Support up to 16 valve positions for complex pneumatic systems. 2、Provide moderate corrosion resistance classified as CRC 2. 3、Meet RCM compliance mark and UL recognized (OL) standards. 4、Feature a compact design with a 10.5 mm width dimension. 5、Equip with G1/8 and M5 pneumatic connections for versatile connectivity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 247g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566587 |
Specifications may be subject to change without notice
