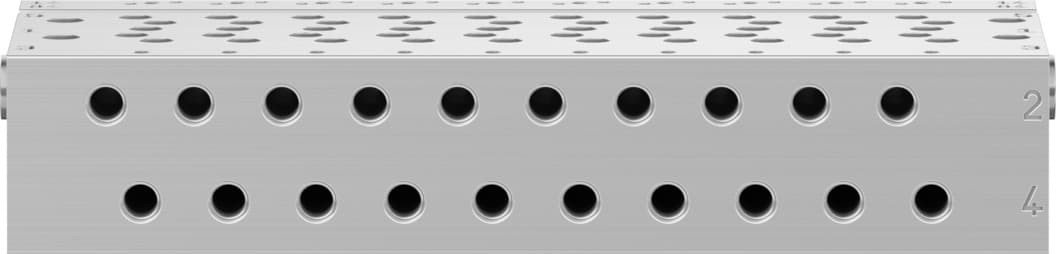

vabm-l1-10w-g18-9
Product ID:13348
Updated: 2026/4/4
Key Features
- 1Operate at pressures up to 10 bar for demanding applications. 2、Achieve CRC 2 moderate corrosion resistance protection. 3、Meet RCM and UL safety standards for reliability. 4、Utilize a compact 10.5 mm width design. 5、Construct from durable wrought aluminum alloy.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 10.5mm | Max. no. of valve positions | 16 |
| Operating pressure | -0.9bar 10bar | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Max. tightening torque for H-rail mounting: | 1.5Nm | Max. tightening torque for valve mounting | 0.45Nm |
| Max. tightening torque for wall mounting | 3Nm | Product weight | 303g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 566589 |
Specifications may be subject to change without notice
