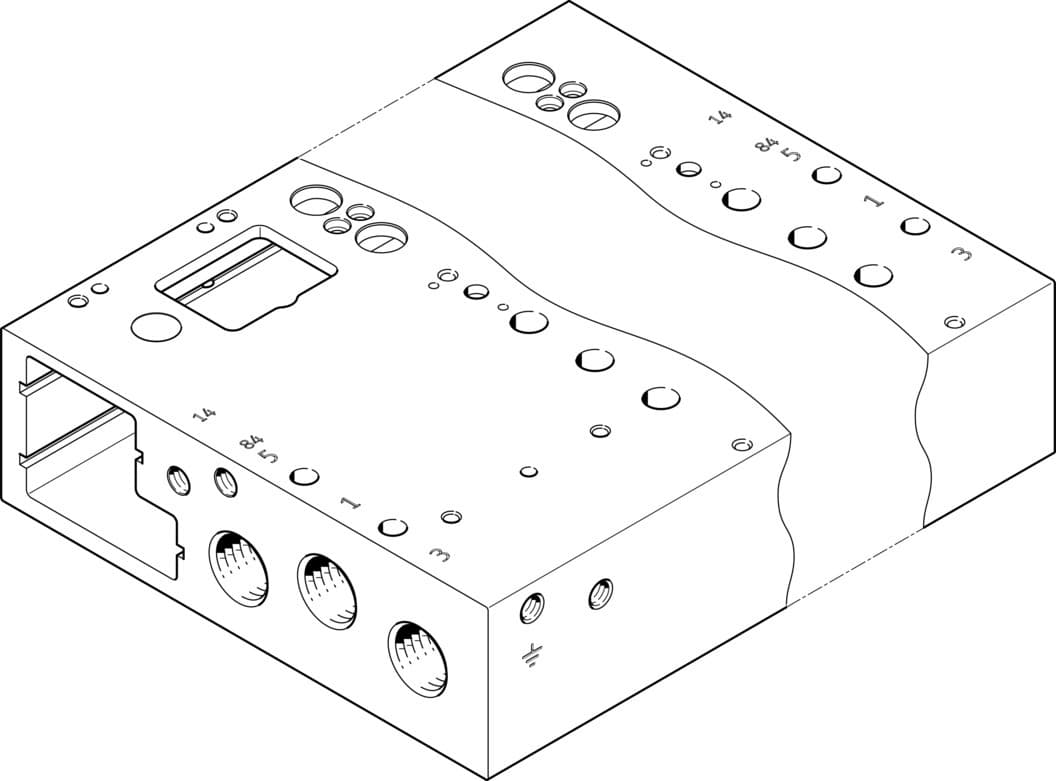

vabm-l1-14g-g14-8-gr
Product ID:13850
Updated: 2026/4/4
Key Features
- 1Support up to 8 valve positions for versatile control. 2、Resist moderate corrosion with CRC 2 classification. 3、Integrate seamlessly using standard G1/4 pneumatic connections. 4、Operate reliably from -20°C to 60°C. 5、Meet RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width dimension | 16mm | Mounting position | Any |
| Max. no. of valve positions | 8 | Certification | c UL us - Recognized (OL) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20°C 60°C | Product weight | 1323g |
| Pilot air port 12/14 | M5 | Pilot exhaust air port 82/84 | M5 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy | Manufacturer ID | 573493 |
Specifications may be subject to change without notice
